Continuous Mixer Working Principle for Industrial Powder Lines
A continuous mixer is industrial mixing equipment that meters raw materials in at one end of a mixing chamber and discharges a finished blend at the other — simultaneously, under steady-state flow. Process engineers choose continuous mixing when throughput is high, batch changeovers are costly, and the plant needs consistent residence time rather than stop-start batch cycles. This guide explains how a continuous mixer works for powder and bulk solids, how continuous mixing compares to batch mixing, and when PerMix continuous paddle or plow designs fit a production line.
Note: search results for “continuous mixer” often show portable concrete mixers or construction continuous flow concrete equipment. Those are jobsite tools. Here we mean an industrial continuous mixer for powder blending and process solids — the same category as PerMix Continuous (PTPC / PTSC) mixers: PerMix Continuous Mixer.
What is a continuous mixer?
A continuous mixer (continuous mixing equipment) keeps the mixing process running while feeders add ingredients and the discharge removes product at a matched rate. Inside the mixing chamber, tools such as pitched paddles or plowshares create mechanical turbulence so particles mix while they travel axially from inlet to outlet.
PerMix continuous mixers build on proven batch paddle and plow technology:

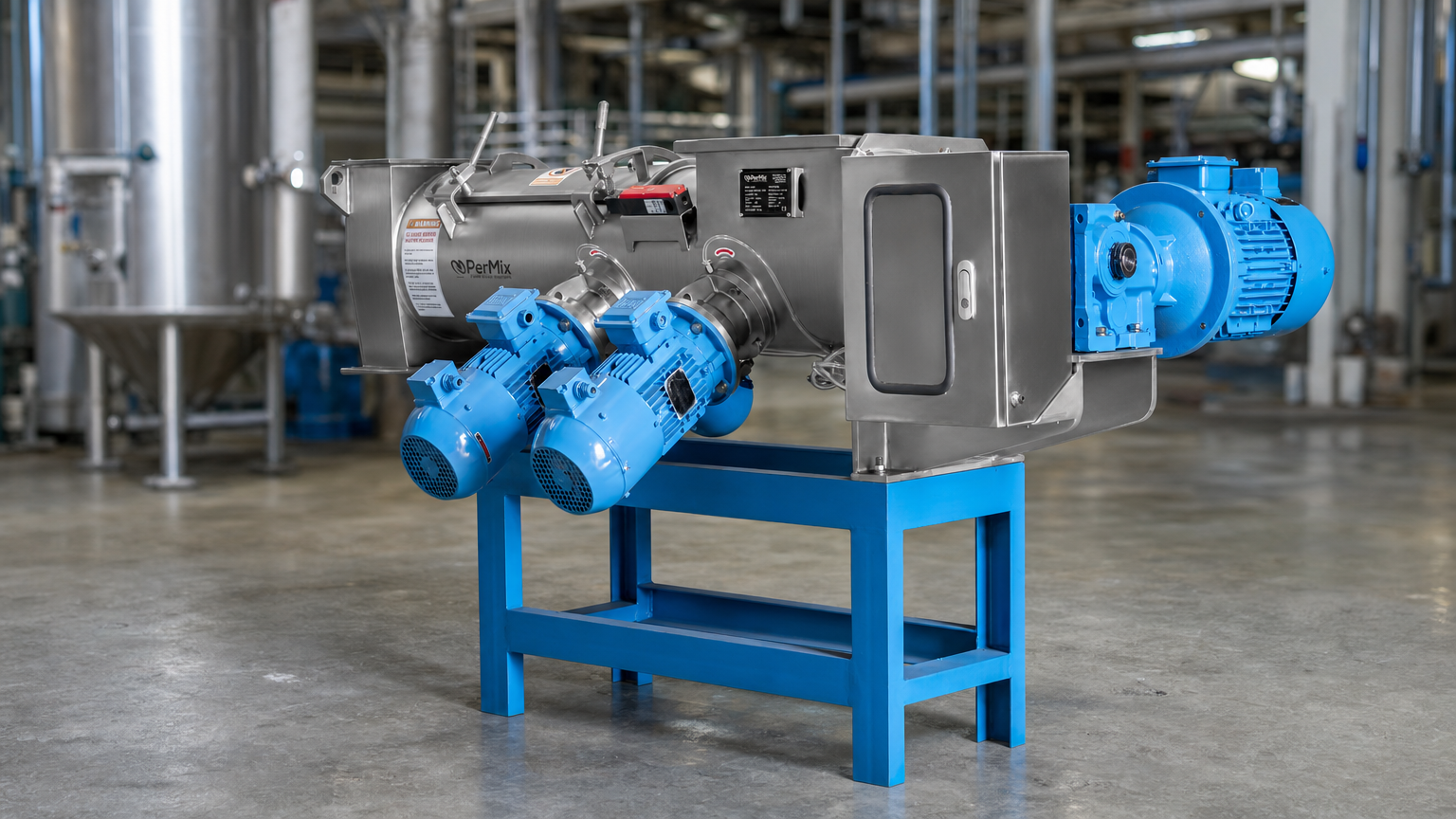

- PTPC continuous paddle mixer — pitched paddles move more material per revolution than a typical ribbon
- PTSC continuous plow mixer — plowshare tools create three-dimensional turbulent movement
- PTPC-W-2 double-shaft continuous paddle mixer — twin shafts expand the active mixing zone for higher throughput
Related powder equipment includes the batch PerMix Paddle Mixer, PerMix Plow Mixer, and PerMix Fluidized Zone Mixer.
How does continuous mixing work?
Continuous mixing technology relies on controlled axial transport plus radial/turbulent mixing:
1. Metered feeders introduce powders (and optional liquids) at the inlet 2. Mixing tools arrange along the shaft to create residence time and prevent short-circuiting 3. Dynamic turbulence or fluidization distributes major and minor components 4. Blended product leaves continuously at the discharge, often with an adjustable dam to tune residence time
Because the unit runs in steady state, mass balance across the vessel matters as much as tool geometry. When feed rates, tool speed, and dam position are set correctly, continuous mixing can approach the homogeneity of a well-run batch mixer while eliminating batch wait time.
Continuous mixer vs batch mixer
Use continuous mixing when:
- Daily tonnage is high and batch cycle overhead dominates cost
- Formulas are stable for long runs
- Upstream/downstream equipment already runs continuously
- You need consistent residence time for coating, conditioning, or liquid addition
Stay with a batch mixer when:
- Many SKUs and frequent changeovers dominate the schedule
- Trace ratios are extreme and easier to validate batch-by-batch
- Cleaning validation between lots is the bottleneck
Both approaches are mixing technology options on the same plant — many sites run batch for R&D and continuous for commodity volume. For selection context see How to choose industrial mixers and Ribbon mixer working principle.
Benefits of an industrial continuous mixer
Key advantages of continuous mixing for powder lines:
- Higher throughput without stacking larger batch vessels
- Stable product quality once the continuous process is tuned
- Smaller footprint for a given hourly capacity
- Easier integration with continuous dryers, coaters, or packaging
- Optional liquid addition into dry materials when spray or injection points are engineered into the mixer
Can a continuous mixer add liquids to dry materials? Yes — when the machine is specified with liquid injection and the residence time supports wetting and distribution. Confirm rates with trials.
How to choose the right continuous mixer
Specify:
- Target throughput (kg/h or t/h) and bulk densities
- Number of feeds and accuracy of minor components
- Required residence time and whether an adjustable dam is needed
- Paddle vs plow vs twin-shaft continuous paddle layout
- Liquid addition, heating/cooling, and dust containment
- Clean-out and changeover expectations
Validate continuous mixing processes on representative formulations before freezing feeder and tool settings. PerMix continuous mixers are configured around product, capacity, and sanitation rather than a fixed catalog-only layout.
FAQ: continuous mixer
What industries use continuous mixers?
Food powders, chemicals, building materials (industrial powder lines — not portable concrete jobsite mixers), animal feed blends, and other bulk solids plants that run steady throughput.
How do continuous mixers compare to fluidized zone mixers?
A fluidized zone mixer intensifies fluidization for fast batch blending. A continuous mixer prioritizes flow-through residence time. See the PerMix Fluidized Zone Mixer when batch fluidization is the better fit.
Who manufactures continuous mixers for industrial powders?
Specialist industrial mixer manufacturers — including PerMix — supply continuous paddle and plow systems for powder process lines. Evaluate tool geometry, feeder integration, and test-center support, not only nameplate capacity.
Next step
If your plant needs continuous mixing equipment for industrial powders, review the PerMix Continuous Mixer (PTPC / PTSC) and contact PerMix to configure residence time, tool type, and line integration. Full catalog: PerMix products.
