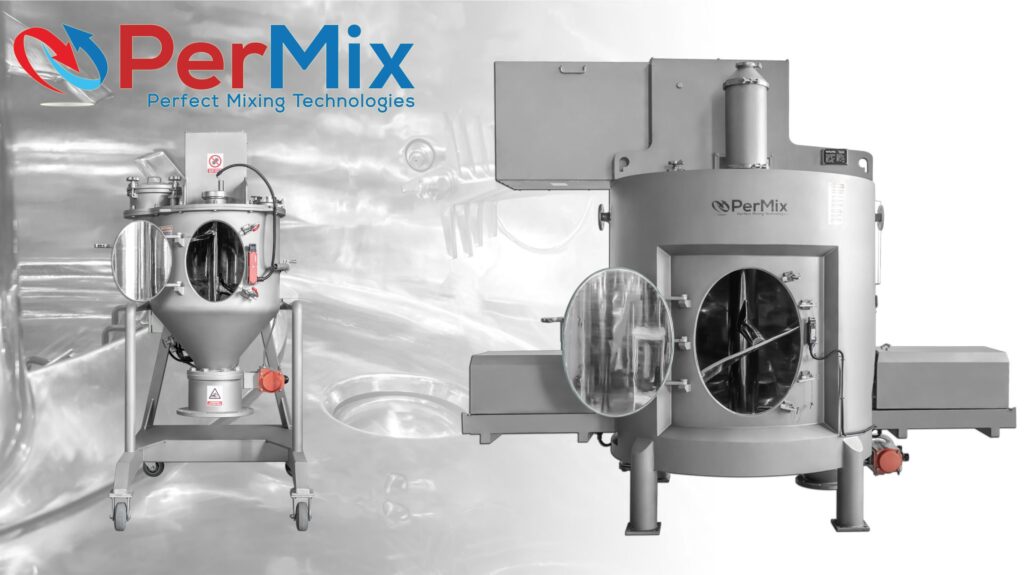

Conical vs. Flat Bottom: Choosing the Right PerMix Vertical Vacuum Paddle Mixer/Dryer
Conical vs. Flat Bottom: Choosing the Right PerMix Vertical Vacuum Paddle Mixer/Dryer When it comes to vacuum mixing and drying, PerMix Vertical Vacuum Paddle
Conical vs. Flat Bottom: Choosing the Right PerMix Vertical Vacuum Paddle Mixer/Dryer
When it comes to vacuum mixing and drying, PerMix Vertical Vacuum Paddle Mixers/Dryers are engineered for high-performance, efficient, and uniform processing of powders, pastes, and slurries. Available in both conical bottom and flat bottom designs, each configuration offers unique advantages depending on the application. Understanding the differences is key to selecting the right solution for your production needs.
What Are Vertical Vacuum Paddle Mixers/Dryers?
PerMix Vertical Vacuum Paddle Mixers/Dryers combine gentle yet thorough mixing with efficient vacuum drying in a compact vertical footprint. These mixers feature a centrally mounted paddle agitator that rotates and lifts material upward, ensuring uniform blending and enhanced heat transfer. The addition of a vacuum system allows for drying at lower temperatures, preserving product integrity while reducing drying times.
Conical Bottom Vertical Vacuum Paddle Mixers/Dryers
Design Features:
- Tapered/conical vessel bottom
- Paddle agitator with orbiting and rotating motion
- Central discharge port at the lowest point
Advantages:
- Excellent discharge of sticky or dense materials due to gravity-assisted flow
- Minimal product residue, reducing product loss and cleaning time
- Ideal for free-flowing powders and semi-paste products
- Better suited for batch-to-batch changeovers in multi-product facilities
Disadvantages:
- Slightly taller design may require additional headroom
- More complex fabrication, which may impact cost for some applications
Ideal Applications:
- Pharmaceuticals & Nutraceuticals (where batch integrity and minimal residue are critical)
- Fine Chemicals
- Food Ingredients (e.g. starches, proteins, flavorings)
Flat Bottom Vertical Vacuum Paddle Mixers/Dryers
Design Features:
- Flat vessel bottom with full-width paddle agitator
- Often includes bottom-mounted choppers for de-agglomeration
- Central or side discharge
Advantages:
- Higher mixing intensity, ideal for agglomerated or cohesive materials
- Easier to integrate with bottom choppers, spray nozzles, and liquid injection systems
- More stable design for mounting load cells and platforms
- Generally lower overall height, beneficial for facilities with height restrictions
Disadvantages:
- Slightly more product hold-up compared to conical bottom
- Discharge may require additional mechanical assistance for sticky materials
Ideal Applications:
- Plant-Based Proteins & Powders
- Pharmaceutical Intermediates
- Nutraceuticals with agglomeration issues
- Slurries or materials requiring intensive shearing or liquid addition
Which Design Is Right for You?
PerMix Advantage: Tailored Solutions for Every Industry
Whether you choose a conical bottom or flat bottom vertical vacuum paddle mixer/dryer, PerMix ensures industry-leading engineering, quality, and value. Our mixers are available with:
- 304/316 stainless steel, Hastelloy, or Hardox construction
- Heating & cooling jackets for precise temperature control
- Load cells for gain-in-weight or loss-in-weight batching
- Full vacuum & pressure capabilities
- Sanitary & pharmaceutical-grade finishes
- CIP or dry-cleaning options
- Customizable controls with PLC/HMI & recipe storage
Final Thoughts
The decision between a conical bottom or flat bottom vertical vacuum paddle mixer/dryer** depends on your product, process, and facility layout. PerMix offers both designs — along with the expertise to help you choose the one that delivers maximum efficiency and ROI.
Contact PerMix today to discuss your application and discover why we’re the global leader in vacuum mixing and drying technology. In the UK, contact PerMix UK
